10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Amplifier Module
$56.73
$104.95

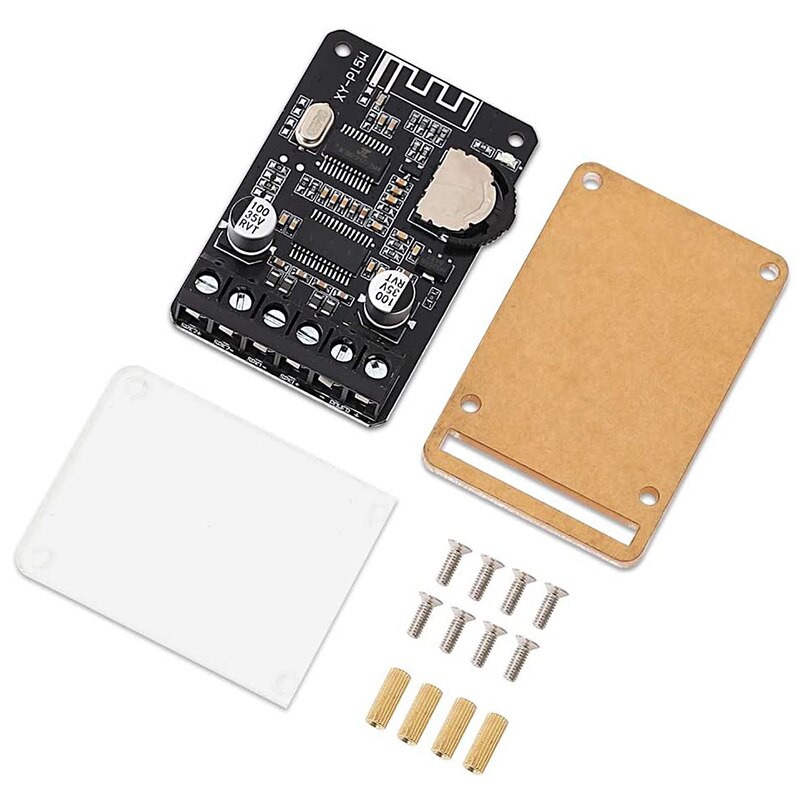

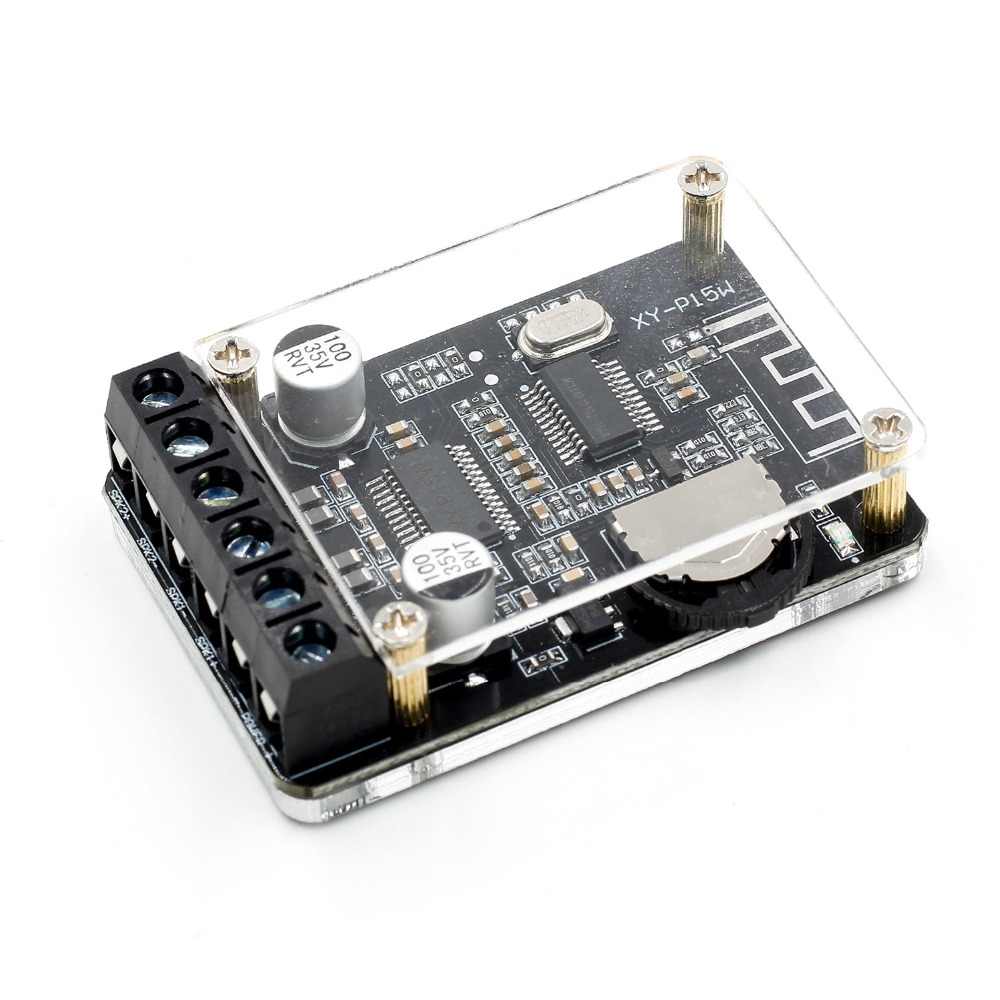

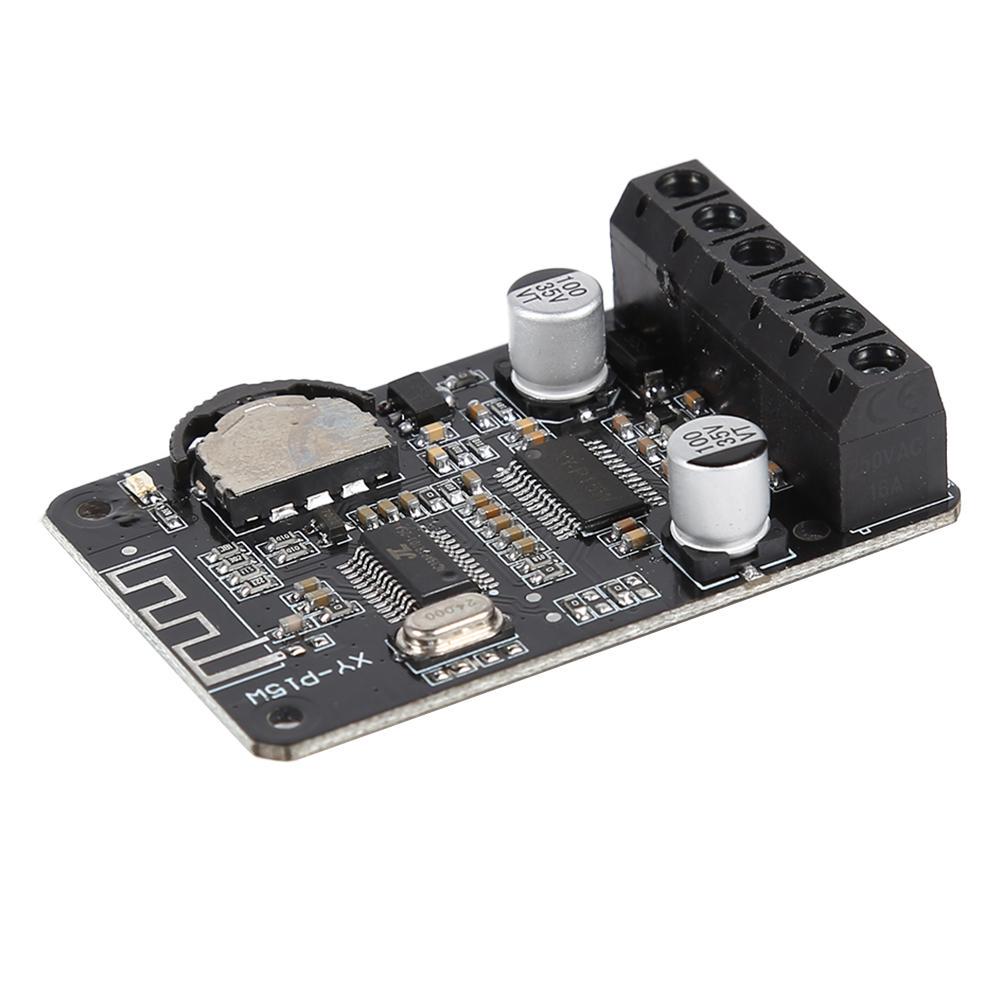

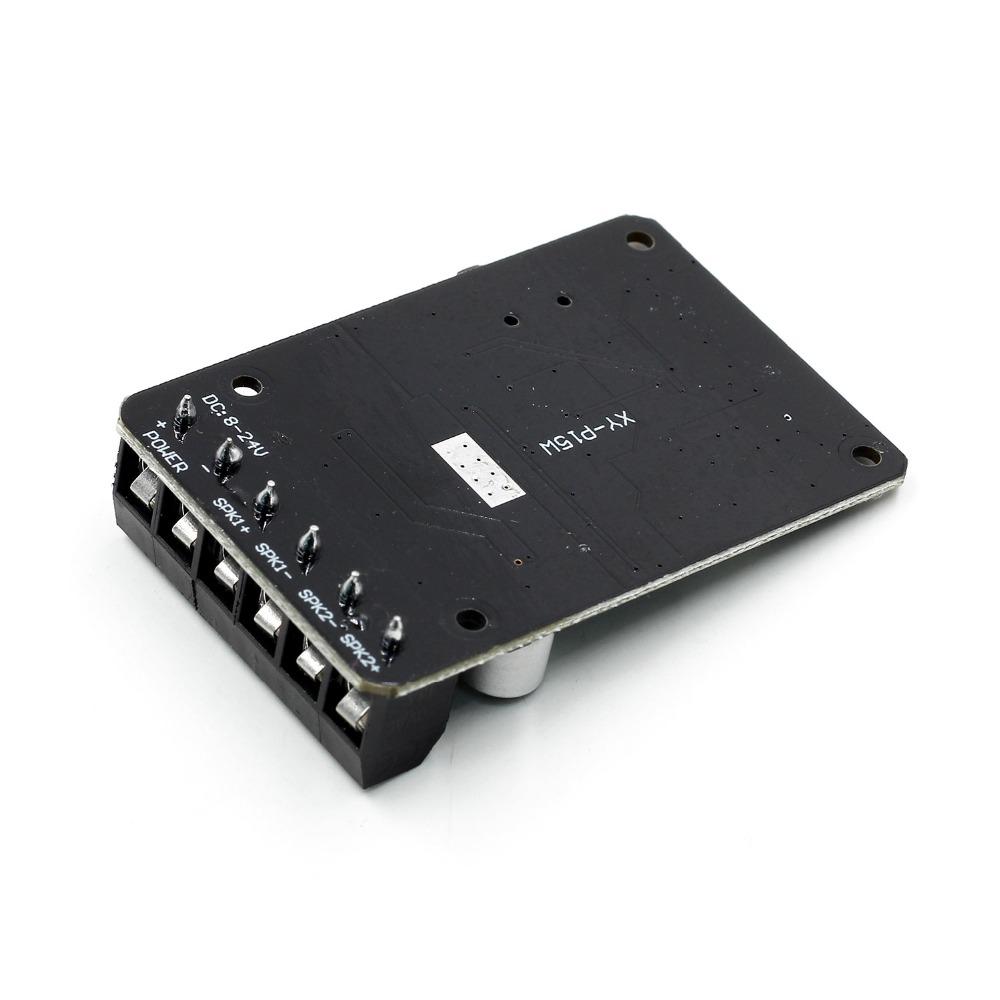

10W/15W/20W Stereo Bluetooth Power Amplifier Board 12V/24V High Power Digital Amplifier Module Product parameters: Product Name: Bluetooth Digital Amplifier Module Product model: XY-P15W Working voltage DC: 8~24V Bluetooth version: 5.0 Transmission distance: 15 meters (visual unobstructed) Number of channels: two channels (stereo) Output power (@1KHz) 16W*2 @12V 4Ω 10W*2 @12V 8Ω 15W*2 @16V 8Ω 20W*2 @20V 8Ω 30W*2 @24V 8Ω (requires heat sink) Adapter speaker (30W~150W) 4 ohms (8~12V power supply) 8 ohms (8~24V power supply) 16 ohms (8~24V power supply) Module protection mechanism Reverse power protection Short circuit protection Self-recovery overheat protection In order to improve the performance of the module, it is recommended to work on the power amplifier chip and heat
